DIY installation possible

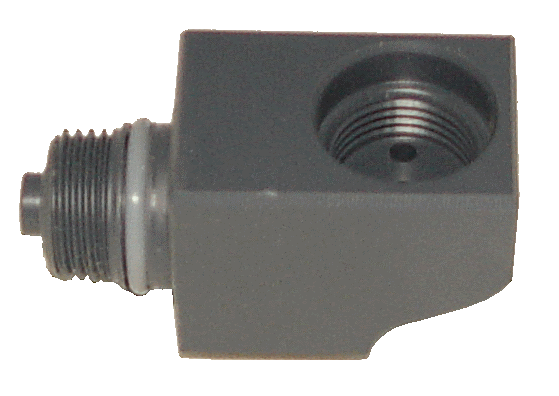

90 Degree Adaptor for vertical pipe installations

This adaptor needs to be used if the pipe in which the shutoff valve is to be installed, is running vertically as opposed to horizontally. It serves to keep the AquaTrip Control Unit in a vertical orientation.


Cable to connect to sensors or switches

3 metres of two core cable with special interface plug, enables the AquaTrip AT201 Control Unit to connect to optional external reset switches or movement sensors.  (It MUST NOT be used on AT301 Systems!)

This allows the AT201 system to be reset after tripping by one of these external switch devices.  Comes supplied with 2 x 3M UR2 Scotchlok connectors and a Cable Tie.

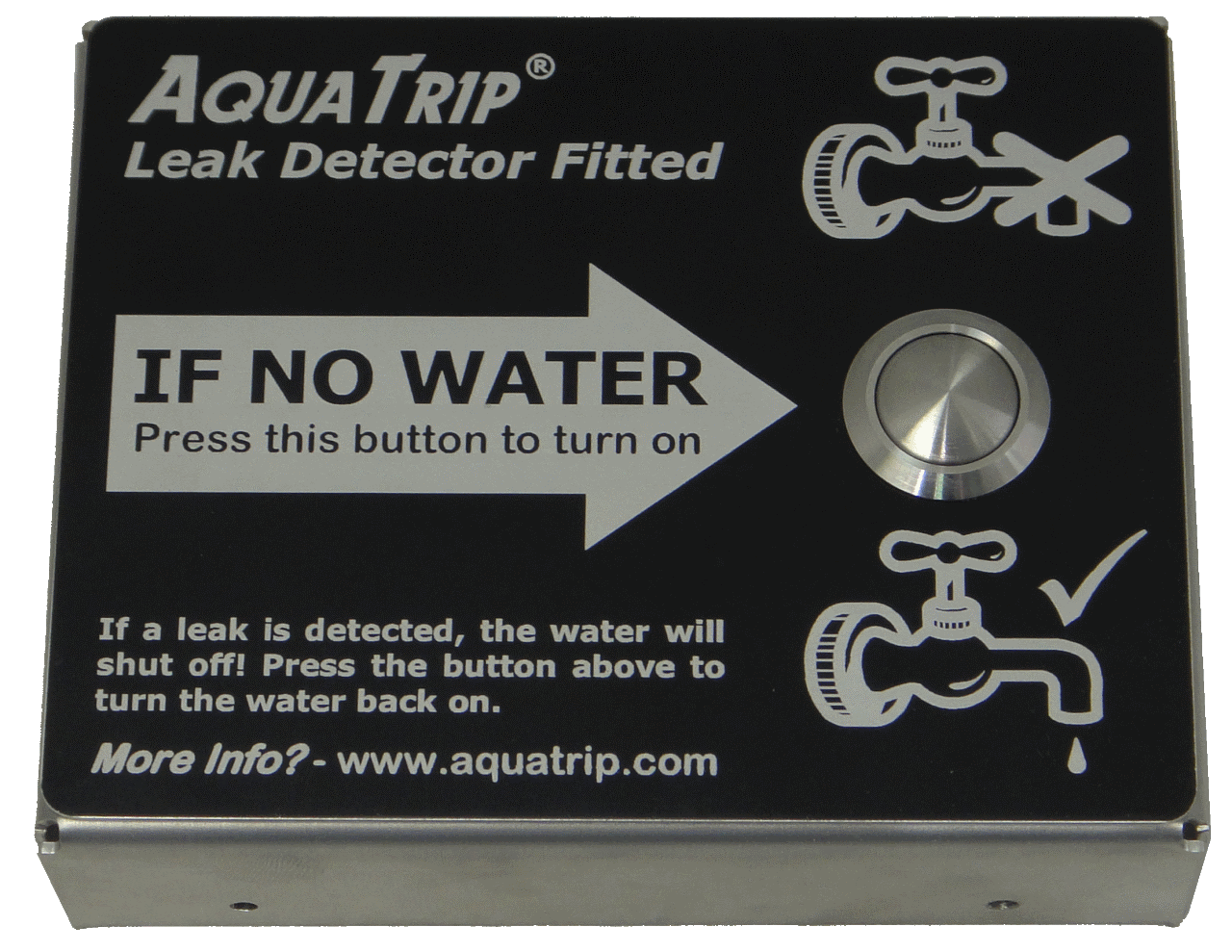

Wired Commercial use reset switch box

Heavy duty, stainless steel, vandal resistant, commercial use, reset switch box, for use in public washrooms and toilet blocks.  This box is used when the system needs to be manually reset if it has triggered or for use as an additional manual reset option if an automated Sensor is also used.  Switch needs to be hard wired back to the Control Unit  (Use 205-AT Cable).


25mm 1" PVC shutoff Valve

Replacement 25mm / 1 inch PVC Shutoff valve


50mm 2" PVC shutoff Valve

Replacement 50mm / 2 inch PVC Shutoff valve with custom adapter


Please reload

Wired Domestic use reset switch box

Light duty plastic reset switch box to allow the system to be reset without having to access the Control Panel (if fitted) or the Control Unit.  Switch is hard wired back to Control Unit.

(Use 205-AT Cable).

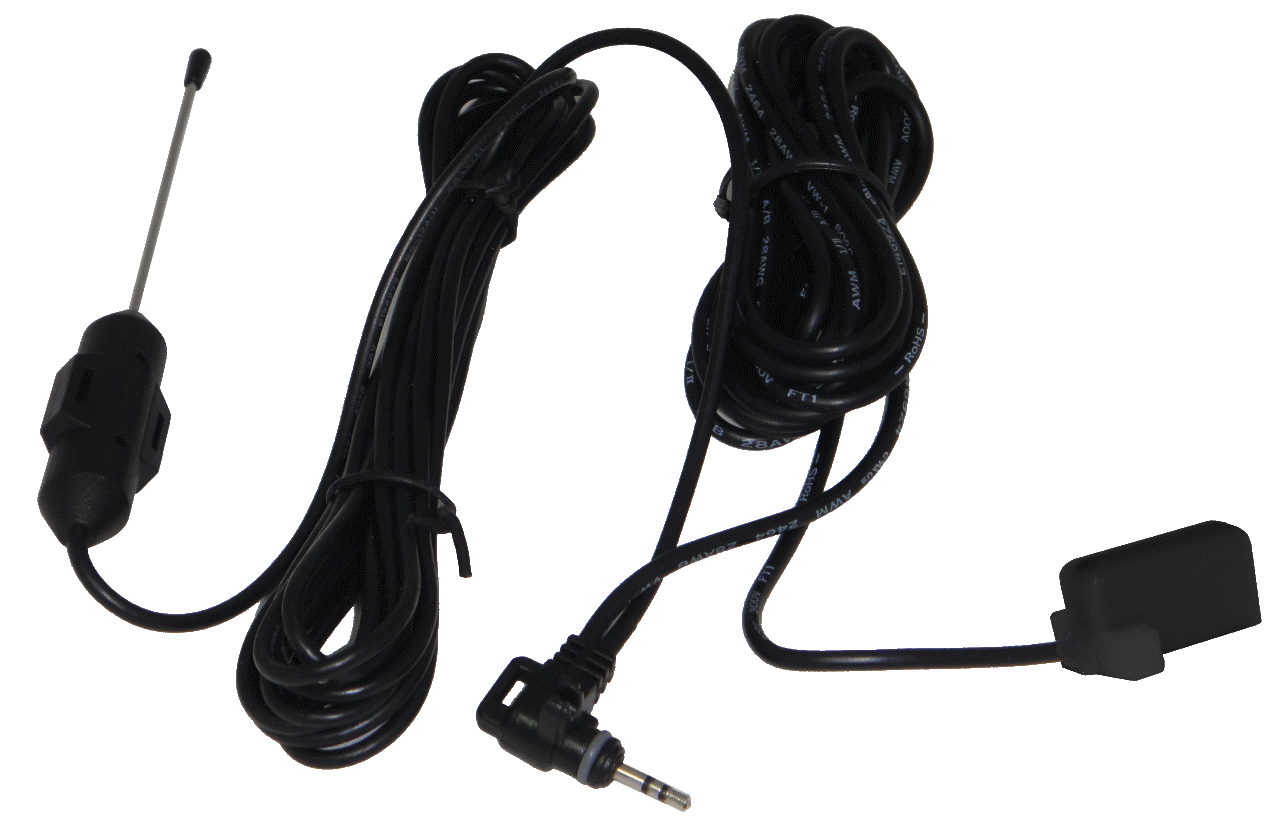

Antenna extension - 3 m

Plug in 3 meter antenna extension for the AT301. Allows the antenna to be moved away from the AT301 Control Unit if the unit is shielded by being fitted deep underground or in an obstructed location.


Antenna extension - 3 m - with Elster Sensor

Plug in 3 meter antenna extension for the AT301, but includes a sensor interface specifically suited to Elster V100 type water meters (20 to 40mm variants).

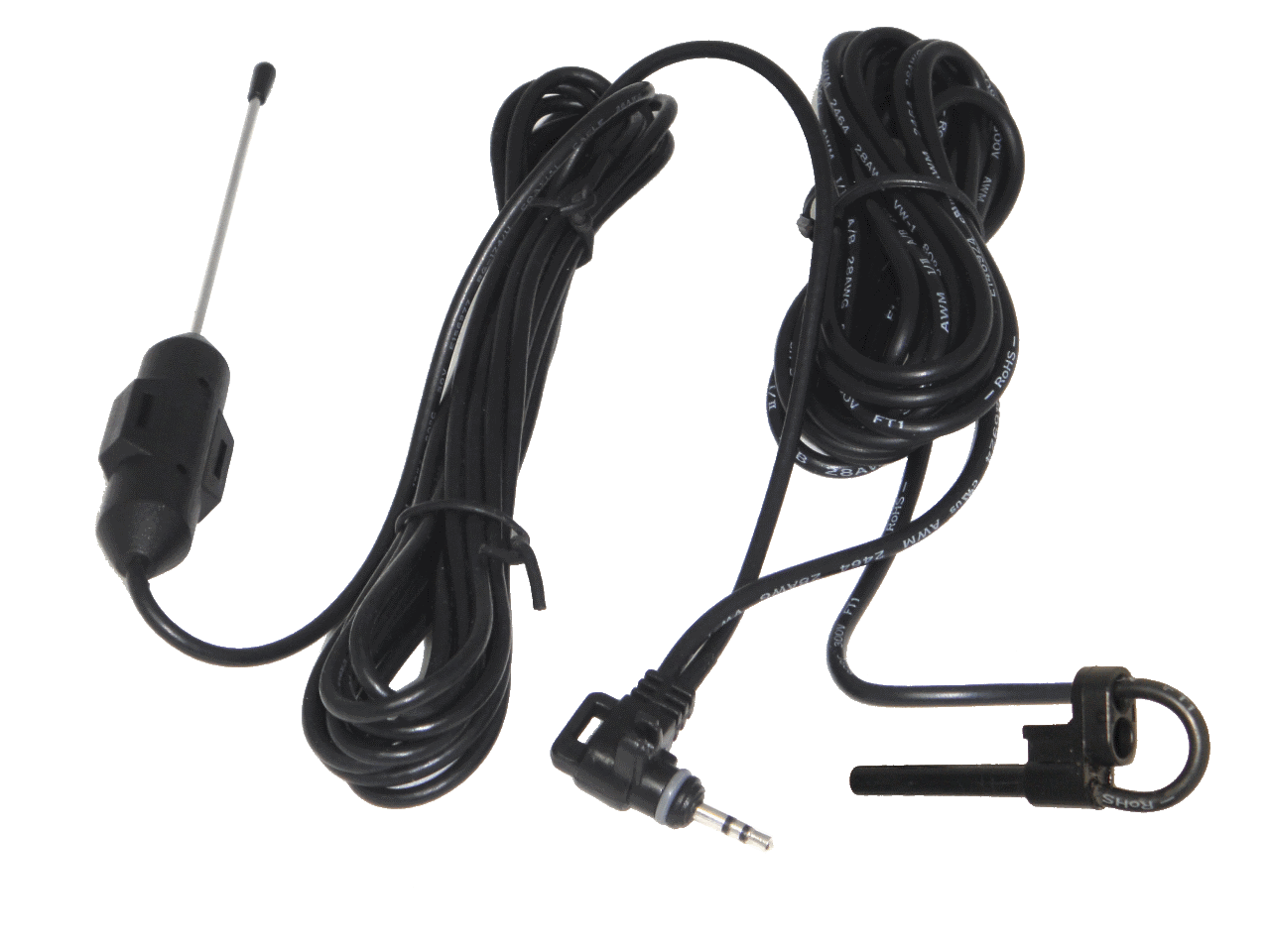

Antenna extension - 3 m - with Dial Sensor

Plug in 3 meter antenna extension for the AT301, but includes a sensor interface specially designed for the RMC dial face water meters which have the recess pocket in the meters window.

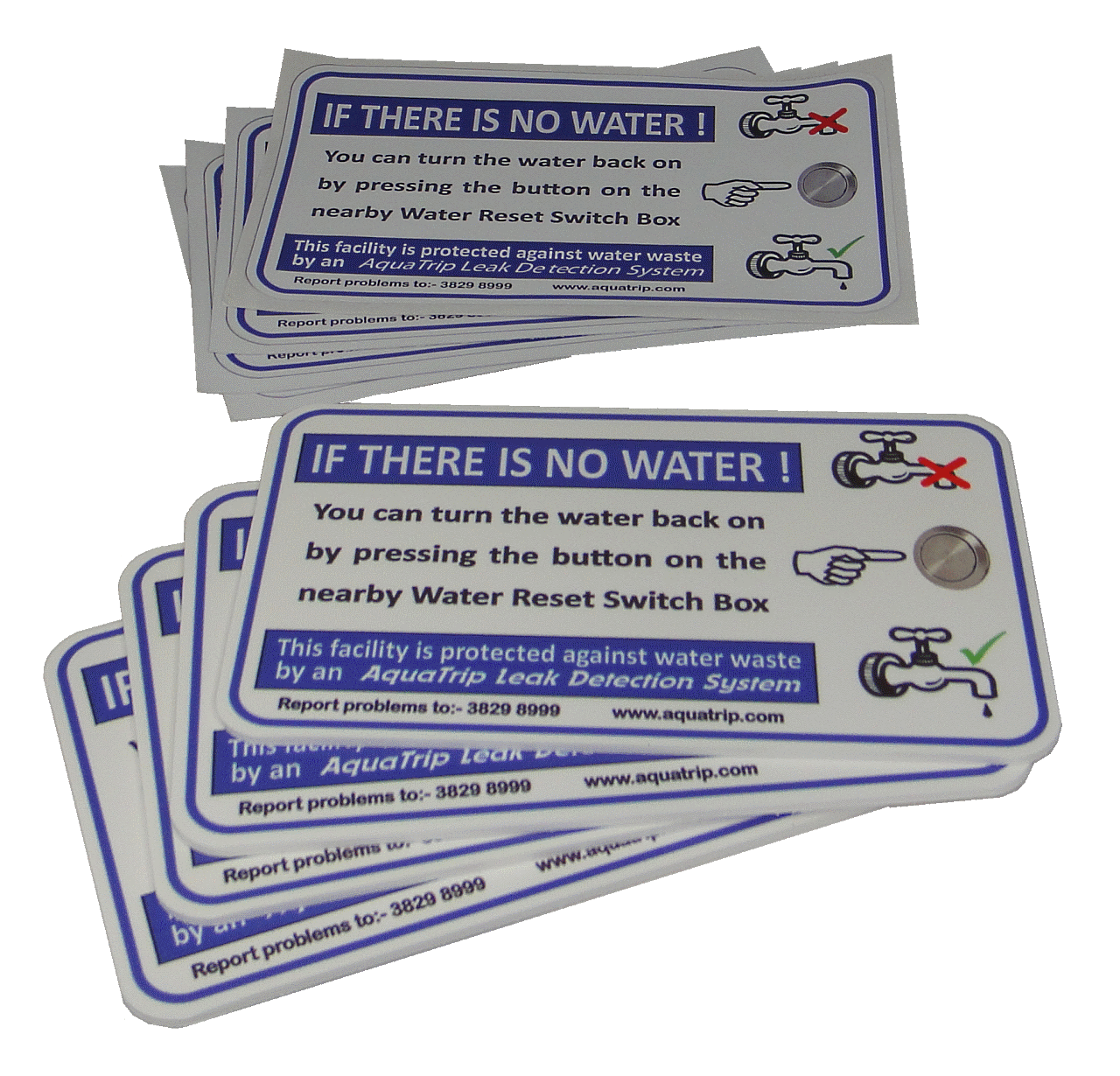

Signage pack for Public Washrooms

Signage pack for public washrooms to alert users to the presence of an aquatrip Leak Detection system - 4 foam core signs and 4 adhesive sticker signs

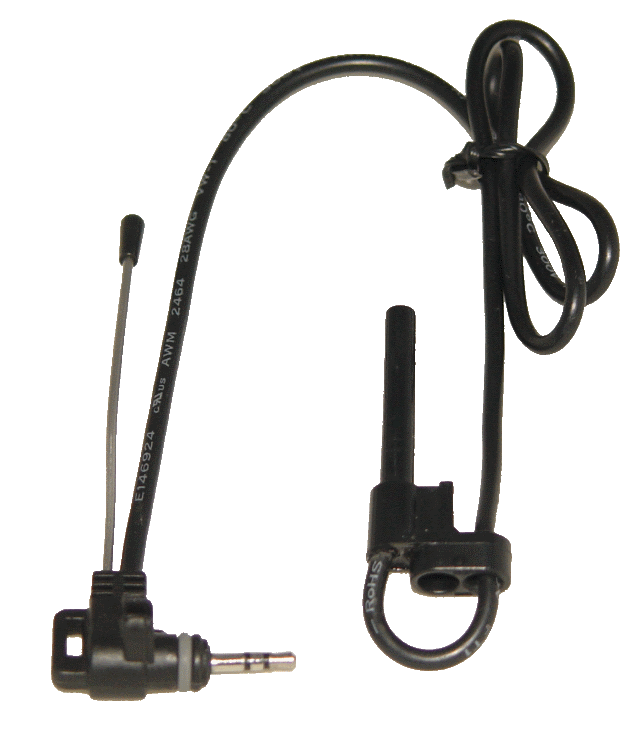

Elster V100 Water meter Sensor cable

Plug in sensor input to allow the AT301 to connect to the Elster V100 water meter incorporates external antenna.
